PFC 91
PFC 91

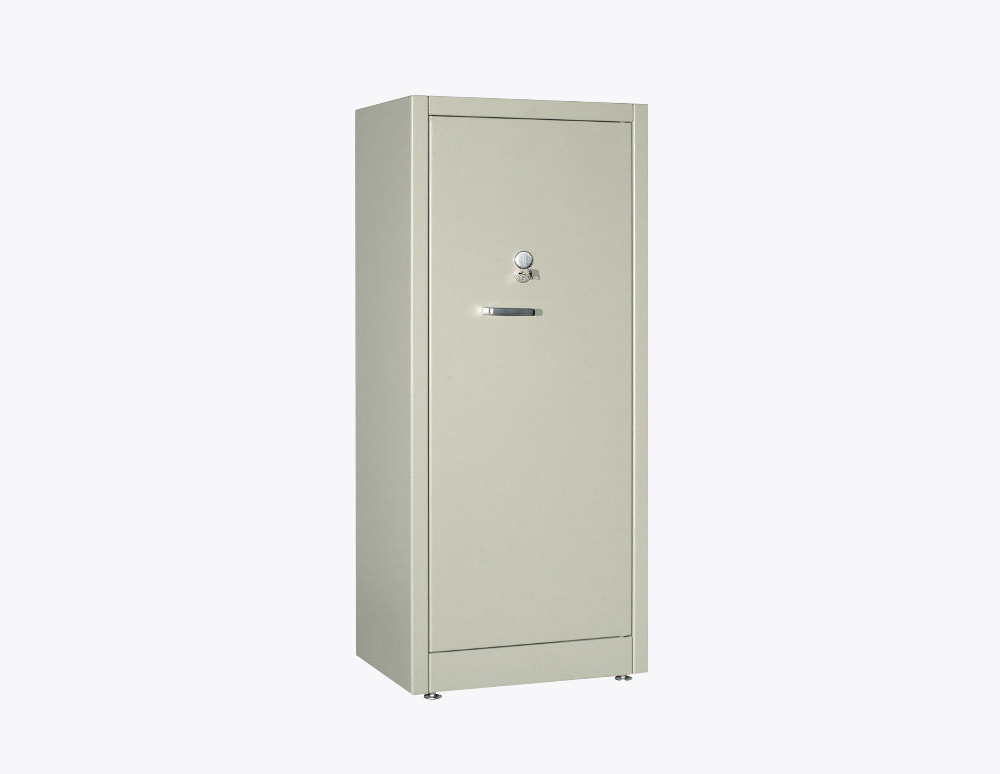

Armored modular cabinet for video recording.
PFC 91 is a modular security cabinet made of sheet steel with holes for the passage of cables and for ventilation. The insertion of two electric fans has been arranged on the back wall. The interior design consists of 3 movable floors. Double-bit lock.
Cabinet made in RAL 7032 textured grey color.
Additional information
Dimensione | 6 fucili, 8 fucili, 13 fucili |
---|---|
Chiusura | serratura a doppia mappa, serratura a doppia mappa + combinazione 3D, serratura a doppia mappa + combinazione elettronica |
FEATURES
- Modular security cabinet, made of sheet steel with a thickness of mm. 3 and internally, with the exception of the rear wall, paneling that makes all the mounting bolts of the cabinet invisible.
- Door with internal hinges, 140 ° opening.
- Triple expansion rack lock actuating 6 bolts diam. 22 of which 4 horizontal, 1 lower vertical and 1 vertical upper, the system is operated by a frictioned handle and confirmed by an 8-lever safety lock with female key (certified EN 1300 class A).
- Holes for cable passage, ventilation doors for the natural circulation of air and predisposition for the insertion of 2 electric fans (top and bottom) diam. 120 mm, placed on the rear wall.
- Anchor holes on the base diam. 8Under the base of the cabinet there are 4 adjustable feet for a perfect leveling of the cabinet.
ACCESSORIES
- Extractable rotating module for 19 “rack for cabinet. Positionable at the top (overall dimensions in H. cm.104 available space under cm.34). The cabinet will be modified with external hinges for a 180 ° opening
- Sliding table on telescopic rails to be inserted on the 19 “rack module (H9 x L 44.3 + 4 x P40).
- Fixed top for 19 “racks (H13.2 x L 44.3 + 4 x P36.
OPTIONS
CODE | LOCK | DIMENSIONS EXT cm | DIMENSIONS INT cm | SHELVES | WEIGHT |
---|---|---|---|---|---|
PFC 910 | Key | H160 x W70 x D50.5 | H140 x W55.9 x D42 | 3 | 183kg |
PFC 910 R | Key + opening retarder | H160 x W70 x D50.5 | H140 x W55.9 x D42 | 3 | 183kg |
PFC 911 | Key | H160 x W70 x D65.5 | H140 x W55.9 x D57 | 3 | 211kg |
PFC 911 R | Key + opening retarder | H160 x W70 x D65.5 | H140 x W55.9 x D57 | 3 | 211kg |
