PFC 16081

PFC 16081

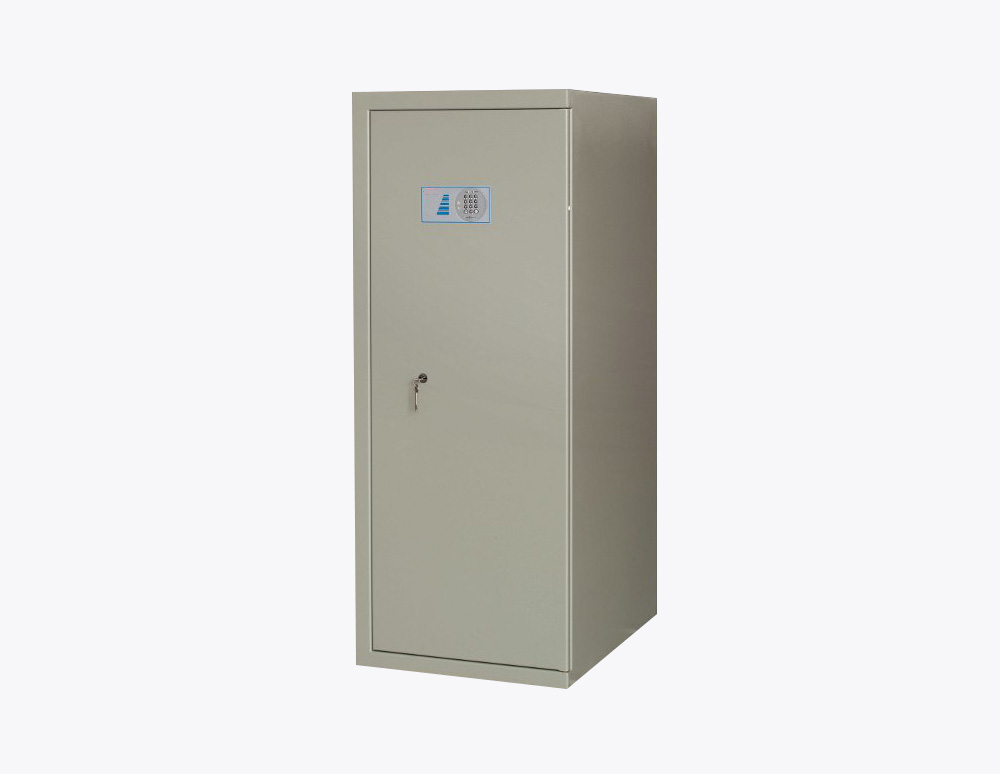

Armored monobloc video surveillance cabinet with removable back.

PFC 16081 is a cabinet made of sheet steel with a thickness of mm. 2. Double map lock.
Equipped with ventilation doors and cable passage holes, removable back.
Cabinet made in RAL 7032 textured grey color.

REQUEST A QUOTE

Category:
000

Additional information

Dimensione

6 fucili, 8 fucili, 13 fucili

Chiusura

serratura a doppia mappa, serratura a doppia mappa + combinazione 3D, serratura a doppia mappa + combinazione elettronica

FEATURES

  • Door with internal hinges, 180 ° opening and anti-tear edge, triple expansion rack lock, operating 3 horizontal bolts and 2 vertical diam. 22 mm, operated by a double barreled lock (EN 1300 class A certified).
  • Holes for cableS positioned in the lower edge of the cabinet, back with ventilation doors and predisposition for two electric fans (top and bottom) diam. 120 mm.
  • The back is easily removable by operating levers accessible only when the door is open. Internally racks 19 “(35 units) front and rear, secured with screws that allow adjustment between door and rack (front from 35 mm to 70 mm – rear from 562 to 597 mm). On the racks, it is possible to insert worktops in galvanized sheet of mm. 1.
  • Anchor holes on the base diam. 16.

OPTIONS

CODELOCKDIMENSIONS EXT cmDIMENSIONS INT cmWEIGHT
PFC 16081KeyH160 x W60 x D81 H159 x W59 x D71140kg
PFC 16081 RKey + opening retarderH160 x W60 x D81 H159 x W59 x D71140kg
